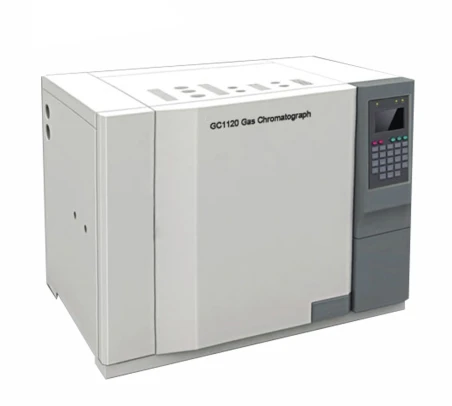

GC1120 Gas Chromatography
Model: DW-GC1120
Sample Introduction System: Sample injector and evaporation chamber
COLUMN OVEN
Temperature range: Ambient temperature +7℃ ~ 400℃ (in 1℃ increment)
Temperature accuracy: ± 0.02℃
Cooling time: 400℃ to 50℃ in 8-10 min at 25℃ ambient
Programmed temperature setting: 0.1℃~40℃/min (in 1℃ increment)
Program ramps: 7 ramps in total (10 ramps available with control workstation)
Size (L*W*H): 284*280*241mm(inside) ; 340*345*281mm(outside)
Sample Introduction System: Sample injector and evaporation chamber
COLUMN OVEN
Temperature range: Ambient temperature +7℃ ~ 400℃ (in 1℃ increment)
Temperature accuracy: ± 0.02℃
Cooling time: 400℃ to 50℃ in 8-10 min at 25℃ ambient
Programmed temperature setting: 0.1℃~40℃/min (in 1℃ increment)
Program ramps: 7 ramps in total (10 ramps available with control workstation)
Size (L*W*H): 284*280*241mm(inside) ; 340*345*281mm(outside)
